    800mm Large Diameter Corrugated Pipe Corrosion Resistance Plastic Culvert Pipe

    Ask Lasest Price
    Supply Ability : 10000 Meter/Meters per Day
    Brand Name : SENPU
    Certification : WRAS, ISO, CE, IAPMO R&T
    Model Number : DN16MM-DN1500MM
    Price : 2.75USD/METER
    Delivery Time : 5-10 working days
    Payment Terms : TT, L/C
    • Product Details
    • Company Profile

    800mm Large Diameter Corrugated Pipe Corrosion Resistance Plastic Culvert Pipe

    Large Diameter 800mm Corrugated Drainage Pipe

    About DWC Pipe

    Double wall corrugated pipe, also known as high density polyethylene (HDPE) double wall corrugated pipe, is a new type of pipe with annular structure and smooth inner wall. Double-wall bellows have the advantages of good ring stiffness, good strength and toughness, light weight, strong impact resistance, not easy to break, convenient transportation and installation, and are widely used in urban drainage and sewage engineering; Drainage engineering, farmland irrigation, municipal drainage; Sewage pipe renovation project; Buried sheath for wire and cable, etc.

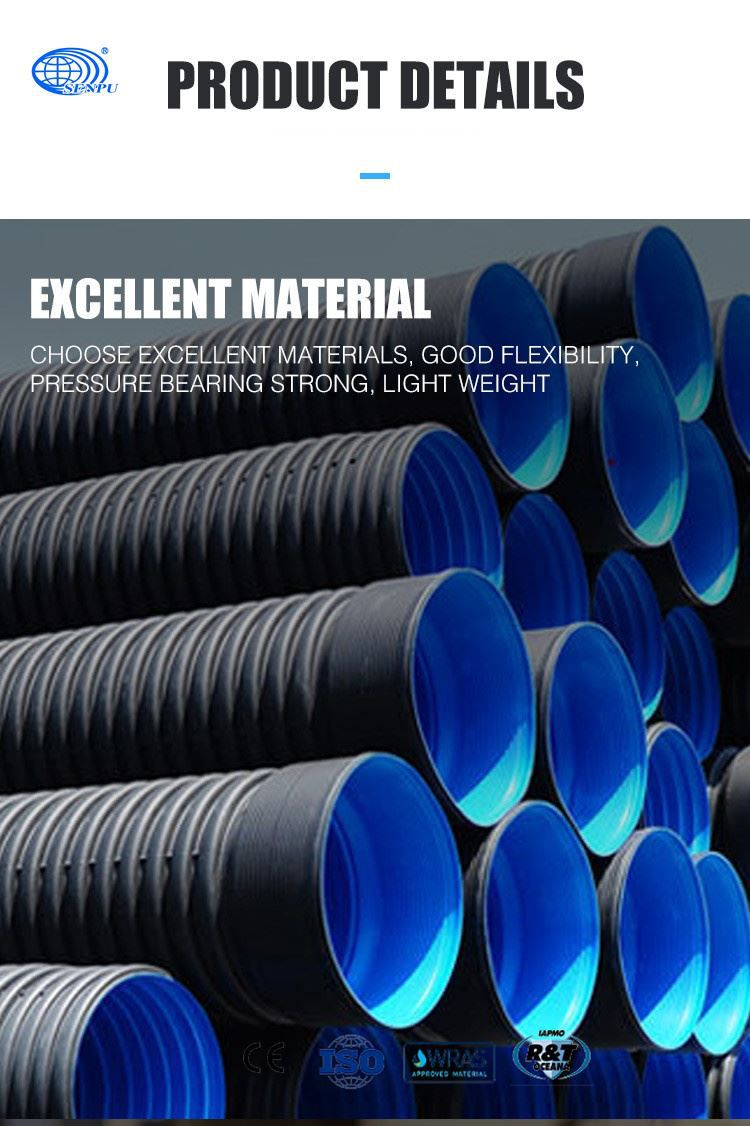

    Product Picture


    Main uses of DWC Pipe

    HDPE double-wall corrugated pipe for drainage is a new type of pipe suitable for outdoor drainage of buildings and municipal sewage with polyethylene resin as the main raw material, adding an appropriate amount of additives, after extrusion forming. It has the advantages of light weight, small drainage resistance, high compressive strength, corrosion resistance and convenient construction. It is the ideal material to replace cast iron pipe and cement concrete pipe.

    Product Specification

    DN/ID

    Min ID

    OD

    O.D.tolerance

    Min Thinkness

    Bellmouth ID

    Min Bellmouth ID

    225

    220

    255

    ±3

    ≥1.7

    264-269

    ≥55

    300

    294

    330

    ±3

    ≥2.0

    348-351

    ≥64

    400

    392

    456

    ±3

    ≥2.5

    465-469

    ≥74

    500

    490

    572

    ±3

    ≥3.0

    549-553

    ≥85

    600

    588

    690

    ±3

    ≥3.5

    668-672

    ≥96

    800

    785

    925

    ±3

    ≥4.5

    888-895

    ≥118


    Company Main Product

    Sichuan Senpu pipe co., LTD. main products are: PE pipes for gas, PE pipe fittings (DN16 - DN630), PE pipes for water supply, pipe fittings (DN 16- DN 48), PP-R pipes for hot and cold water use ,pipe fittings (DN16 - DN200), PE double-wall corrugated pipe (ID200 - ID500), underground drainage with steel belt reinforced polyethylene spiral corrugated pipe (ID300 - ID1800), SRTP pipe , stainless steel pipe, Heat resistant polyethylene (PE-RT) pipes for hot and cold water, pipe fittings (DN 12 - DN 160), etc.,

     Corrugated Drainage Pipe (5)

    20210901140423d1c1927acfde494c98214d7c579450a6

    202109011404237c11bf290a5c4154ba3f1861dd6c994f

    20210901140423735d46b2b1b343529dbf5a61a7d74b79

    20210901140426965138085f5a42fea8aa0822c71ecf22

    202109011404268ba75c0ab157499dbbf84027aa2ccd57

    2021090114042758f586174bfc46cab77bd79cf5e60e0e

    2021090114042943d922f2037640febdab943571ab7ec1
