Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness

Sichuan Senpu Pipe Co., Ltd.
Contact Now
    Buy cheap Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness from wholesalers

    Buy cheap Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness from wholesalers
    • Buy cheap Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness from wholesalers
    • Buy cheap Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness from wholesalers
    • Buy cheap Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness from wholesalers

    Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness

    Ask Lasest Price
    Supply Ability : 10000 Meter/Meters per Day
    Brand Name : SENPU
    Certification : WRAS, ISO, CE, IAPMO R&T
    Model Number : DN16MM-DN1500MM
    Price : 2.75USD/METER
    Delivery Time : 5-10 working days
    Payment Terms : TT, L/C
    • Product Details
    • Company Profile

    Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness

    Color Flexible Corrugated Plastic Cable Wire Electrical Pipe

    Product Application


    It can be widely used in municipal, telecommunication, electric power, gas, water, heat and other pipeline projects.

    Urban and rural trenchless horizontal directional drilling power pipe drainage project, and open excavation power pipe drainage project.

    Urban and rural trenchless horizontal directional drilling and drainage projects. Industrial waste water discharge project.

    Product Specification


    Item No.

    flexible pipe (AD)

    Inner × outer (mm)

    Curved radius (mm)

    Packaging unit (m)

    PE-10.0

    AD10.0

    1/4"

    6.5×10.0

    16

    100

    PE-13.0

    AD13.0

    5/16"

    10.0×13.0

    20

    100

    PE-15.8

    AD15.8

    3/8"

    12.0×15.8

    30

    100

    PE-18.5

    AD18.5

    14.3×18.5

    40

    100

    PE-21.2

    AD21.2

    1/2"

    17.0×21.2

    45

    100

    PE-25.0

    AD25.0

    20.0×25.0

    45

    50

    PE-28.5

    AD28.5

    3/4"

    23.0×28.5

    50

    50

    PE-34.5

    AD34.5

    1

    29.0×34.5

    60

    50

    PE-42.5

    AD42.5

    1 1/4"

    36.0×42.5

    70

    50

    PE-54.5

    AD54.5

    2"

    48.0×54.5

    90

    25

    PE-74.0

    AD74.0

    2 1/2"

    63.0×74.0

    130

    10

    PE-88.0

    AD88.0

    3"

    76.0×88.0

    170

    10

    PE-108.

    AD108.0

    4"

    94.0×108.0

    225

    10


    Construction instructions


    1.It is strictly forbidden to throw, strike, carve and expose the pipe during transportation and construction.

    2. The axes of the two tubes should be aligned during hot melt butt, and the end face cutting should be vertically flat.

    3.The processing temperature, time, pressure, according to the climatic conditions to adjust accordingly.

    4.The minimum bending radius of pipe shall be greater than or equal to the outer diameter of pipe.

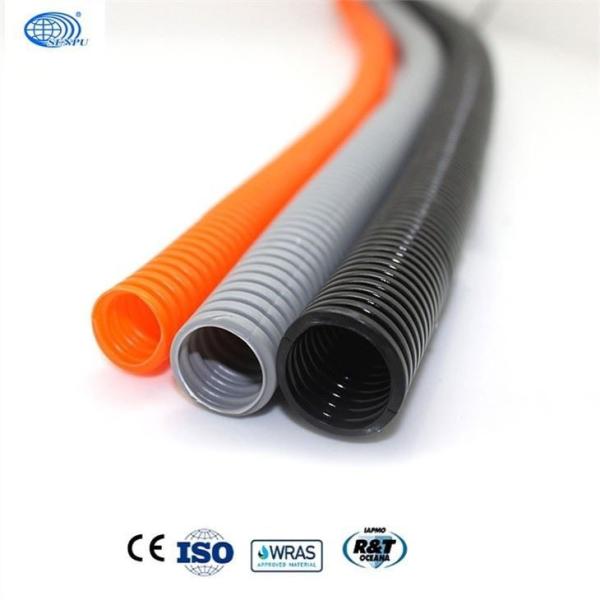

    Product Picture
